NEW
CG480-S6053
- 4U (NVIDIA MGX™ architecture)
- Dual AMD EPYC™ 9005 series processors,TDP up to 500W
- (24) DDR5 RDIMM, 12 channels per CPU(1DPC), up to 6400MT/s
- (8) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports
- Max (13) PCIe 5.0 x16 expansion slots, supporting up to (8) NVIDIA H200 NVL or RTX PRO 6000 Blackwell Server Edition PCIe GPU cards
- (2) 10GBase-T Ethernet Ports with Intel® X710-AT2 (NCSI supported)
- (1) 1000Base-T Dedicated Server Management Port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish Support
- Dual BIOS & BMC
- TPM2.0 on board
- Hardware Root of Trust available as an optional feature
NEW
CD281-S4051-X2
- 2OU2N (DC-MHS and ORv3 architecture)
- Single AMD EPYC™ 9004/9005 Series processor, up to TDP 500W, per node
- (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s, per node
- (12) Front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports per node
- (2) FHHL PCIe 5.0 x16 slots per node
- (1) 1000Base-T Dedicated Server Management Port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish Support
- Dual BIOS & BMC</li>
- TPM2.0 and Hardware Root of Trust module are supported as optional
- 4U
- Single Socket SP5, supports AMD EPYC™ 9005/9004 series processors
- (12) DDR5 DIMM Slots, 1DPC, up to 6400MT/s, RDIMM/RIMM-3DS
- (4) PCIe 5.0 x16 slots
- (2) PCIe 4.0 x16 slots (x8 signal)
- (12) Hot-swap 2.5” U.2 PCIe 4.0 NVMe drive bays
- (1) 1000Base-T Dedicated Server Management Port
- (1) ASPEED AST2600 with IPMI & DMTF Redfish Support, Dual BMC Flash
- Closed Loop Liquid Cooling module or Air Cooling module for CPU
CX171-S4056
- 1U (DC-MHS architecture)
- Single AMD EPYC™ 9004/9005 Series processor, TDP up to 500W
- (24) DDR5 RDIMM, 12 channels(2DPC), up to 5200MT/s
- (12) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports
- (2) PCIe 5.0 x16 expansion slots
- (2) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
CX271-S4056
- 2U (DC-MHS architecture)
- Single AMD EPYC™ 9004/9005 Series processor, TDP up to 500W
- (24) DDR5 RDIMM, 12 channels(2DPC), up to 5200MT/s
- (8) or (24) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports
- Up to (2) PCIe 5.0 x16 expansion slots
- (1) 1000Base-T Dedicated Server Management port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
CD270-S4051-X2
- 2U2N (DC-MHS architecture)
- Single AMD EPYC™ 9004/9005 Series processor, up to TDP 500W, per node
- (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s, per node
- (6) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports per node
- (1) FHHL PCIe 5.0 x16 slot per node
- (1) 1000Base-T Dedicated Server Management port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional

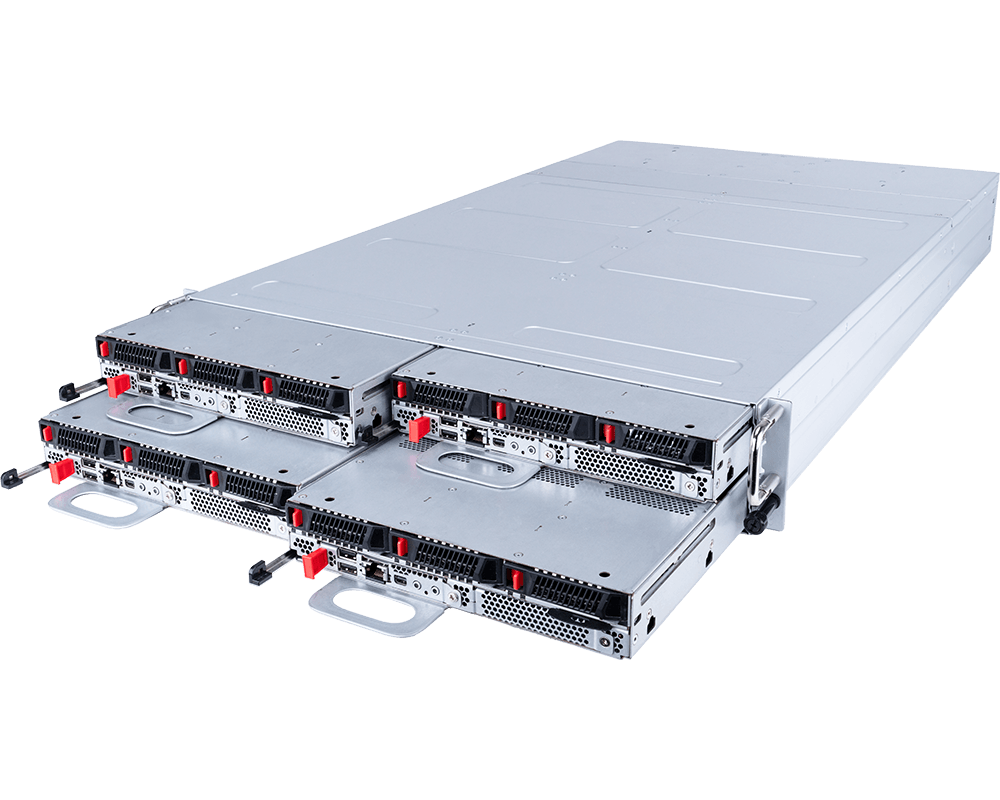

CD270-S4051-X4
- 2U4N (DC-MHS architecture)
- Single AMD EPYC™ 9004/9005 Series processor, up to TDP 400W, per node
- (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s, per node
- (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports per node
- (1) 1000Base-T Dedicated Server Management port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
S2301
- 2U, Dual Socket SP5 supports AMD EPYC™ 9005/9004 Series processors
- (24) DDR5 DIMM Slots, 1DPC, upto 6000MT/s, RDIMM/RIMM-3DS
- (8) Hot-swap E3.S 1T PCIe5.0 x4 NVMe
- (8) Hot-swap E3.S 2T PCIe5.0 x4 CXL2.0 CMM-D
- (2) PCIe 5.0 x16 FHHL expansion slots
- (2) 1000Base-T Ethernet ports (Intel® I350AM2) on motherboard support NCSI function
- (1) OCP3.0 PCIe 5.0 slot, supports NCSI funtion
- (1) 1000Base-T Dedicated server management port for ASPEED AST2600 with IPMI & DMTF Redfish Support, dual BIOS and BMC
S1206
- Dual Socket SP5, supports AMD EPYC™ 9005/9004 series processors
- (24) DDR5 DIMM Slots, 1DPC, up to 6400MT/s, RDIMM/RIMM-3DS
- (12) Hot-swap 2.5” front drive bays support U.2 PCIe 4.0 NVMe
- (2) PCIe 5.0 x16 expansion slots
- (2) 1000Base-T Ethernet Ports (Intel® I350AM2) on motherboard support NCSI function
- (1) 1000Base-T Dedicated Server Management Port
- ASPEED AST2600 with IPMI & DMTF Redfish Support
- Dual BIOS and BMC
