NEW
CD270-S3071-X4
- 2U4N (DC-MHS architecture)
- Single Intel® Xeon® 6900 series processor, TDP up to 400W, per node
- (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s, per node
- (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node
- (1) 1000Base-T Dedicated Server Management Port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish Support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
CS280-S3065
- 2U
- Single Intel® Xeon® 6700 series processor, TDP up to 350W
- (8) DDR5 RDIMM, 8 channels(1DPC), up to 6400MT/s
- (24) Hot-swap 3.5" SATA/SAS drive bays
- (2) Hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- (2) 25G SFP28 and (2) 1000Base-T Ethernet ports on board
- (2) PCIe 5.0 x16 FHHL slots
- (1) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port with ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- TPM2.0 module are supported as optional

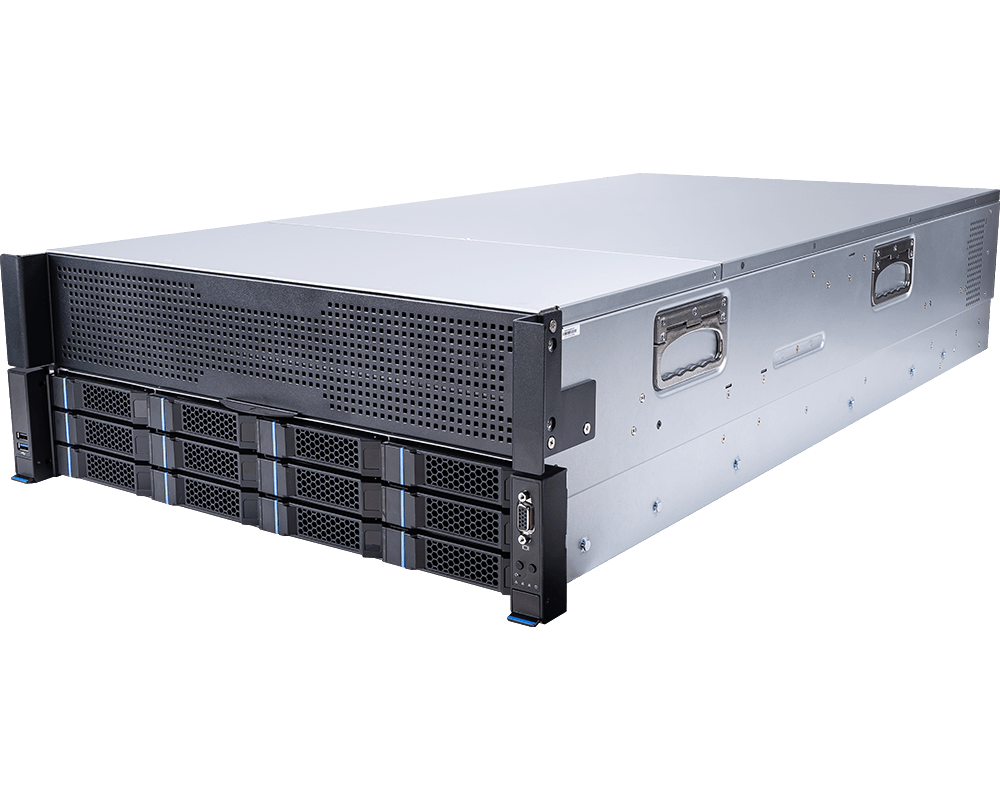

- 4U
- Dual 4th/5th Generation Intel® Xeon® Scalable Processors
- (32) DDR5 DIMM Slots, 2DPC, up to 5600MT/s, RDIMM
- (8) PCIe 4.0 or 5.0 x16 slots, supporting (8) NVIDIA RTX 6000 Ada Generation Graphics cards or L40S PCIe GPU cards
- (2) PCIe 4.0 x16 slots (one with x8 signal) or (1) PCIe 4.0 x16 slots
- (12) Hot-swap 3.5"/2.5" drive bays support NVMe or SATA devices
- (1)1000Base-T Ethernet port (Intel® I210AT)
- BMC ASPEED AST2600 with IPMI & DMTF Redfish Support
CG480-S5063
- 4U (NVIDIA MGX™ architecture)
- Dual Intel® Xeon® 6500/6700 series processors, TDP up to 350W
- (32) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
- (20) Front hot-swap E1.S PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- Max (13) PCIe 5.0 x16 expansion slots, supporting up to (8) NVIDIA H200 NVL or or RTX PRO 6000 Blackwell Server Edition PCIe GPU cards
- (2) 10GBase-T Ethernet Ports with Intel® X710-AT2 (NCSI supported)
- (1) 1000Base-T Dedicated Server Management Port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 on board
- Hardware Root of Trust available as an optional feature
CG290-S3063
- 2U (NVIDIA MGX™ architecture)
- Single Intel® Xeon® 6500P-series and 6700P-series processor with 136 PCIe lanes, TDP up to 350W
- (16) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
- (4) Rear hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- Max (7) PCIe 5.0 x16 expansion slots, supporting up to (4) NVIDIA H200 NVL or RTX PRO 6000 Blackwell Server Edition PCIe GPU cards
- (1) 1000Base-T Dedicated Server Management port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 on board
- Hardware Root of Trust available as an optional feature
CX171-S3066
- 1U (DC-MHS architecture)
- Single Intel® Xeon® 6700 series processor, TDP up to 350W
- (16) DDR5 RDIMM, 8 channels(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
- (12) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- (3) PCIe 5.0 x16 expansion slots
- (2) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
CX170-S5062
- 1U (DC-MHS architecture)
- Dual Intel® Xeon® 6700 series processors, TDP up to 350W
- (32) DDR5 RDIMM, 8 channels per CPU(2DPC), up to 6400MT/s(1DPC) and 5200MT/s(2DPC)
- (12) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
- (2) Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports
- (2) PCIe 5.0 x16 expansion slots
- (1) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
- (1) 1000Base-T Dedicated Server Management port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
CD270-S3061-X4
- 2U4N (DC-MHS architecture)
- Single Intel® Xeon® 6700 series processors, TDP up to 350W, per node
- (16) DDR5 RDIMM, 8 channels(2DPC), up to 6400MT/s, per node
- (3) Front hot-swap 2.5"" U.2 PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node
- (1) 1000Base-T Dedicated Server Management Port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
CD270-S3061-X2
- 2U2N (DC-MHS architecture)
- Single Intel® Xeon® 6700 series processor, TDP up to 350W, per node
- (16) DDR5 RDIMM, 8 channels(2DPC), up to 6400MT/s, per node
- (6) Front hot-swap 2.5"" U.2 PCIe 5.0 x4 NVMe drive bays per node
- (2) 2280/22110 PCIe 5.0 x2 NVMe M.2 ports per node
- (1) FHHL PCIe 5.0 x16 slot per node
- (1) 1000Base-T Dedicated Server Management port per node with:
- ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
- Dual BIOS & BMC
- TPM2.0 and Hardware Root of Trust module are supported as optional
